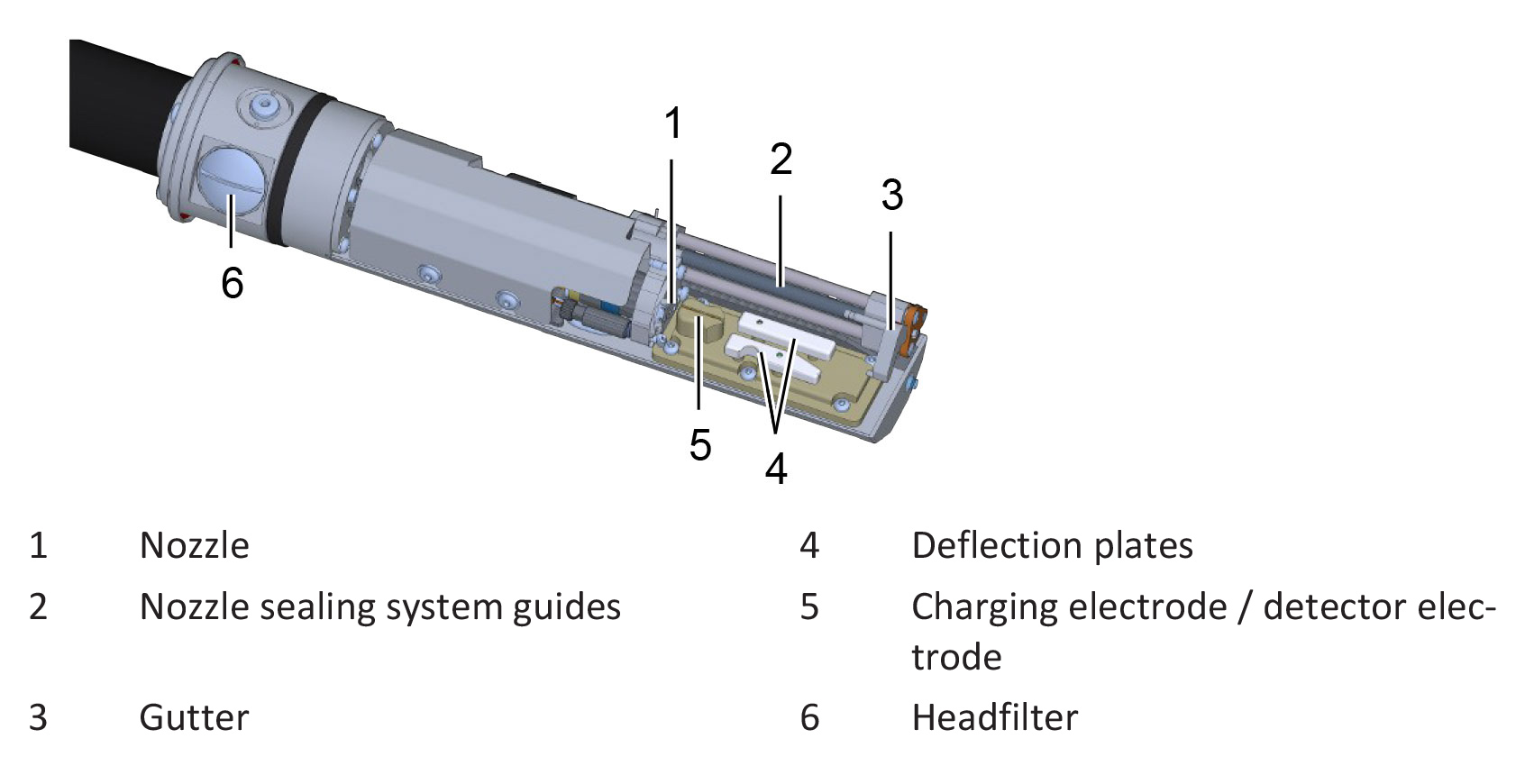

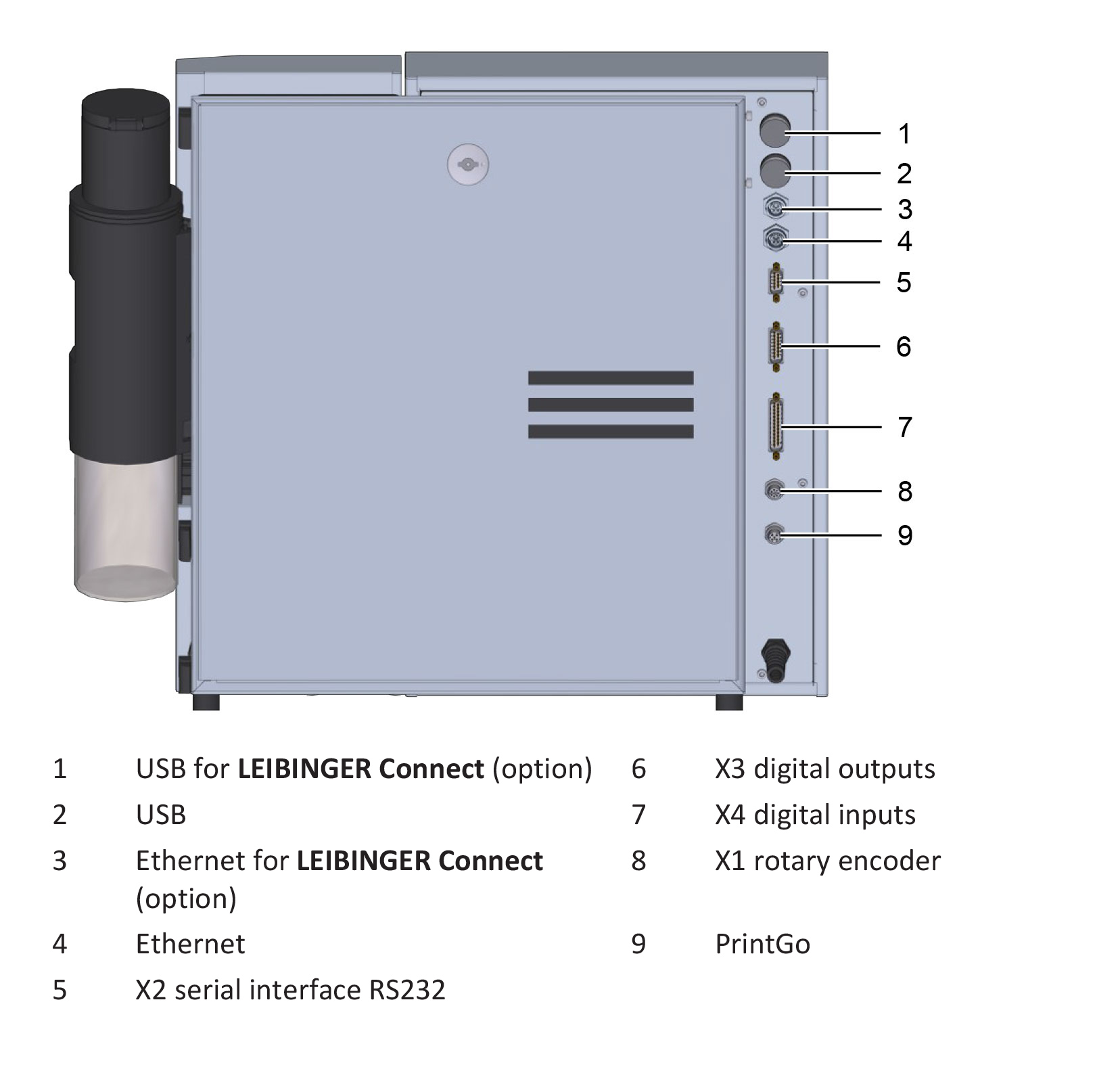

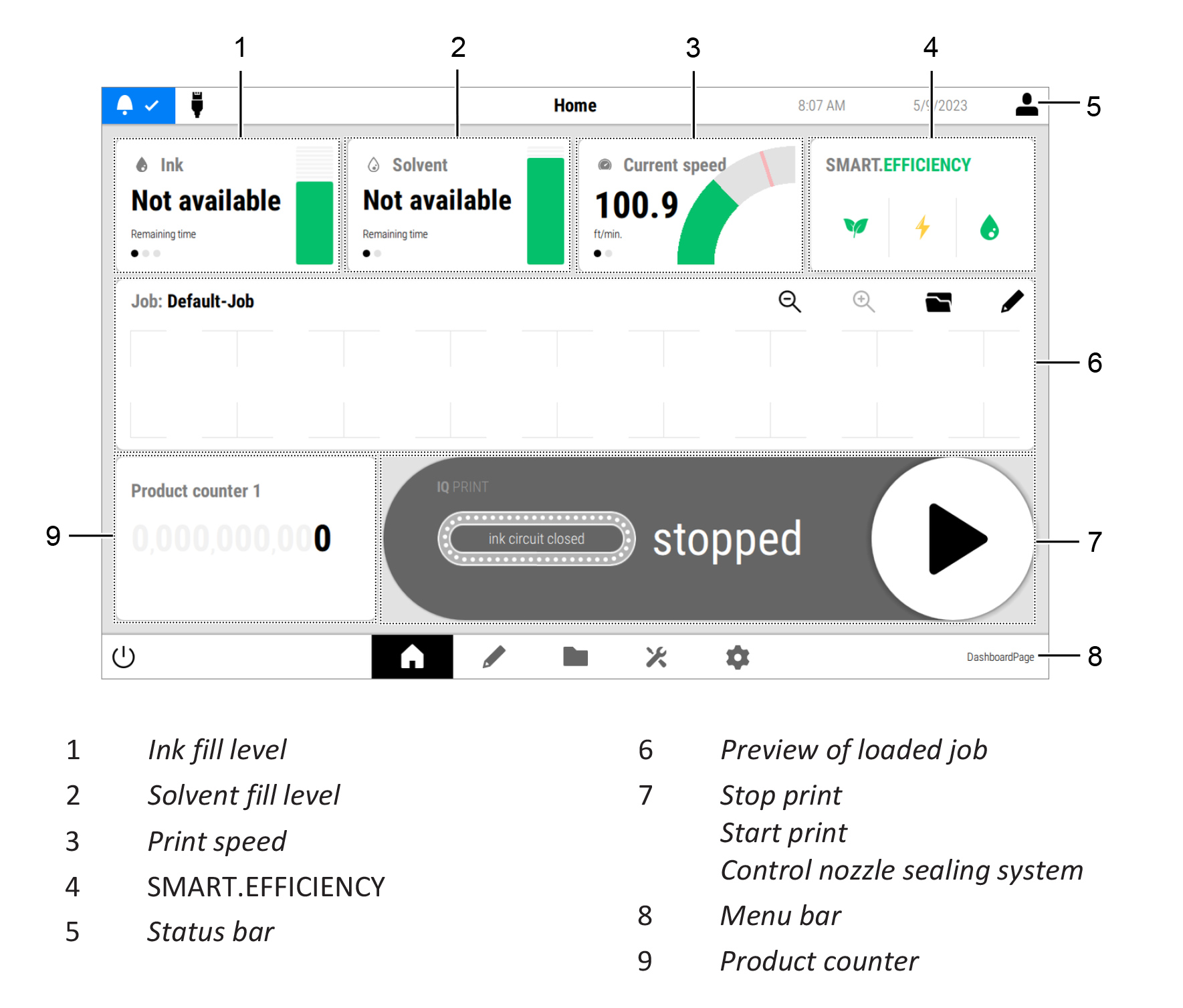

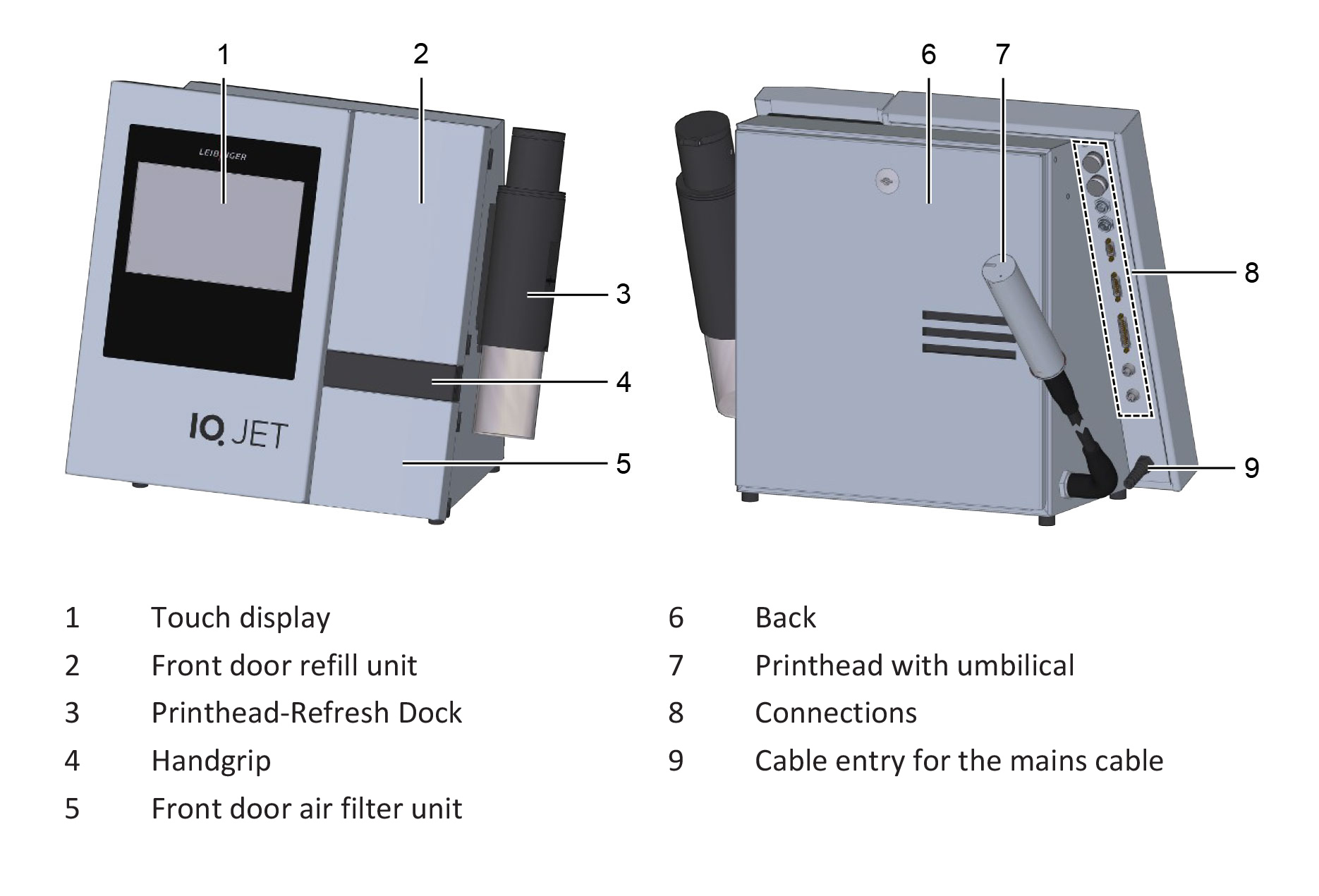

The IQJET inkjet printer consists of a housing and a print head. The print head is connected to the printer housing via a print head cable. The printer housing contains electronics, hydraulics and ink and solvent reservoirs. The reservoirs can be filled using cartridges. A 10.1" touch screen is built into the printer housing to operate the printer. The print head contains electrical and mechanical components that create the ink jet and ink droplets. There is an exit opening for the ink jet at the end of the print head. Interfaces for connecting to devices and exchanging data are located on the back of the printer housing. On the right side of the device is a Printhead-Refresh Dock for regenerating the print head during production breaks.
| Voltage range | 100-240 V AC |
| Grid frequency | 50–60 Hz |
| Current consumption | max. 0.68 A (at 100 V AC); max. 0.35 A (at 240 V AC) |
| Power consumption in printing mode | 36 W |
| Power failure bypass time with integrated mini UPS (optional) | a few seconds |
| Interval mode | max. 20 times can be defined |
| Display | 10.1″ color display, 1,280×800, multi-touch, capacitive (PCAP) |

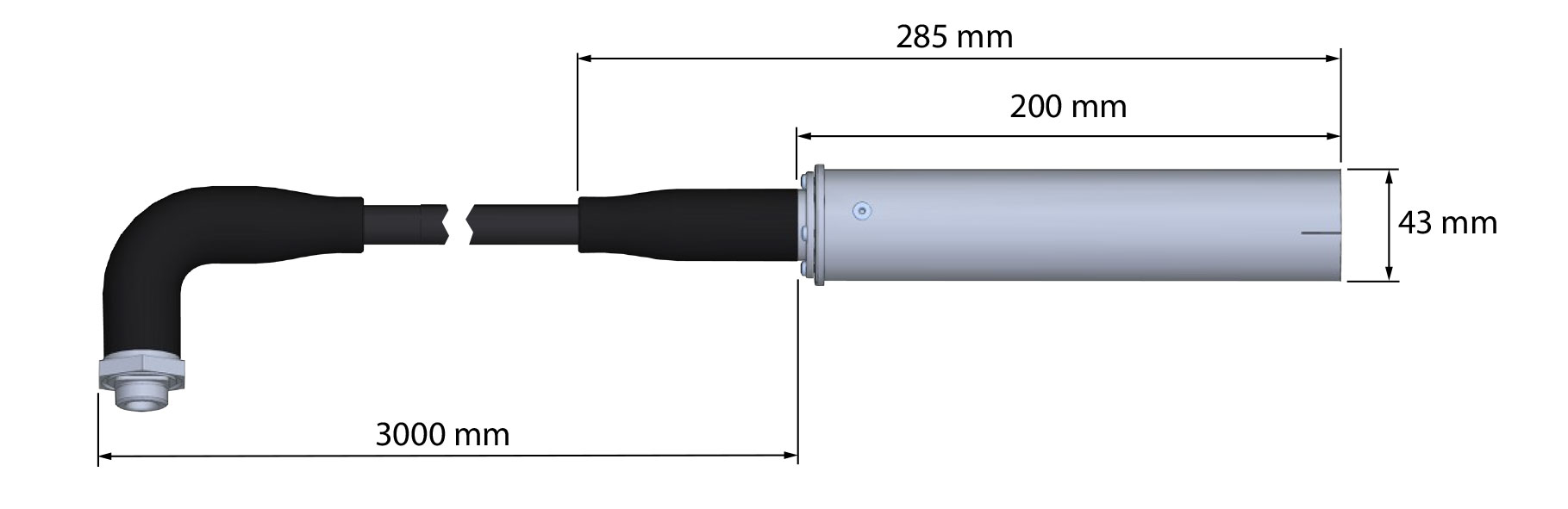

| Printhead cable length | 3 m, 6m (optional) |
| Printhead cable bend radius | > 45 mm (fixed mounting), > 180 mm (movable mounting) |
| Printhead type | SK 7 |
| Printhead acceleration | max. 25 m/s 2 |
| Print head nozzle size | 70 μm, 60 μm (optional), 50 μm (optional, not available for pigment ink printer variants) |
| Print head material | Frame: aluminum, print head housing: V2A |
| Printhead weight | approx. 0.7 kg (without print head cable) |
| Printer casing material | V2A |
| Printer shell weight | 23,15 kg (empty, incl. print head with 3 m print head cable) |
| Degree of protection | IP56, IP66 (optional) |
| Temperature range | +5 °C až +45 °C |
| Relative humidity | max. 90 % (non-condensing) |
| Ink tank | 1 290 ml |
| Thinner container | 1 400 ml |
| Ink cartridge volume (dye ink) | 950 ml |
| Ink cartridge volume (pigment ink) | 850 ml |
| Volume of diluent filling | 950 ml |
| Ink consumption, number of characters per cartridge (950 ml) | 94 million characters (with 7 point font and 60 μm nozzle) |
| Thinner consumption in printing mode (ethanol) | less than 2 ml/h (at 20°C and 60 μm nozzle) |
| Spotřeba ředidla v režimu tisku (MEK) | 2.7 ml/h (at 20°C and 60 μm nozzle) |
| Thinner consumption during production breaks | 0 ml/h (with Eco-Mode active) |
| Pigmented inks | Various pigmented inks in different colors (only for printer variants designed for pigmented inks) |
| Dye inks | Various coloring inks in different colors |
| Ink base | MEK, MEK-free, acetone, ethanol |
| Min. print height (single line printing) | 1,3 mm (at 5 drops; distance from head to product 3 mm; print height 55%) |
| Max. print height | 13,1 mm (at 48 drops; head-to-product distance 15 mm; print height 85%) |
| Max printer speed | 2,400 prints/min |
| Max speed | 413 m/min (at 5×5 and 60 μm nozzle)
275 m/min (at 5×5 and 70 μm nozzle) All data refers to single-line text, 10 characters/inch and a droplet spacing of 0.43 mm. |
| Max. print speed | 3,200 characters/s (at 5×5 and 60 μm nozzle)
2,100 characters/s (at 5×5 and 70 μm nozzle) |
| Max number of rows | 8 rows (at 5×5)
6 rows (at 7×5) |
| Distance between head and product | 3 mm to 30 mm (depending on font mode) |
| Max. vertical resolution (keystroke height) | 48 drops |
| Number of keystrokes per task | max. 20,000 |
| Fonts | All fonts can be combined as desired.
fonts from 5 points to 48 points 3dot_tower_cable, 3dot_tower_highspeed, 5dot, 5dotbaseline_offset, 5dot_tower, 5dot_tower_highspeed, 6dot, 7dot, 7dot_baseline_offset, 9dot, 9dot_baseline_offset, 9dot_baseline_offset_bold, 11dot, 11dot_MSGothic, 12dot, 12dot_baseline_offset, 13dot, 13dot_MSGothic, 14dot, 14dot_baseline_offset, 16dot, 16dot_baseline_offset_BERN, 18dot, 24dot_BERN, 24dot_baseline_offset, 24dot_baseline_offset_BERN, 32dot, 48dot uppercase and lowercase letters, umlauts, special characters, Asian characters, Cyrillic, Arabic and other characters Latin, Arabic, Persian, Hebrew, Traditional Chinese, Simplified Chinese, Thai, Korean, Kanji, Katakana, Hiragana (limited character set), Cyrillic, Vietnamese vertical font max. 20 user-defined fonts |
| Font mode | multi-level contrast and bold printing
variable character spacing content mirrored / upside down / inverted content readable on both sides (alternating rotation by 180°) inverting content |
| Print job | max. 48 objects per print job
max. 32 counters per print job max. 48 shift times per print job max. 1024 print jobs per print job list |
Are you interested in the price of the IQJET inkjet printer from LEIBINGER? Contact us or arrange a meeting with our sales representative! You are just a few clicks away from a non-binding offer.
IQJET uses specially designed inks and solvents for more perfect printing results. The printer and the consumables are optimally tuned using parameters. LEIBINGER develops inks and solvents that guarantee optimal printing results on a wide range of materials. These perfect inks bring technological progress that exceeds expectations by offering the best possible print quality for your needs.

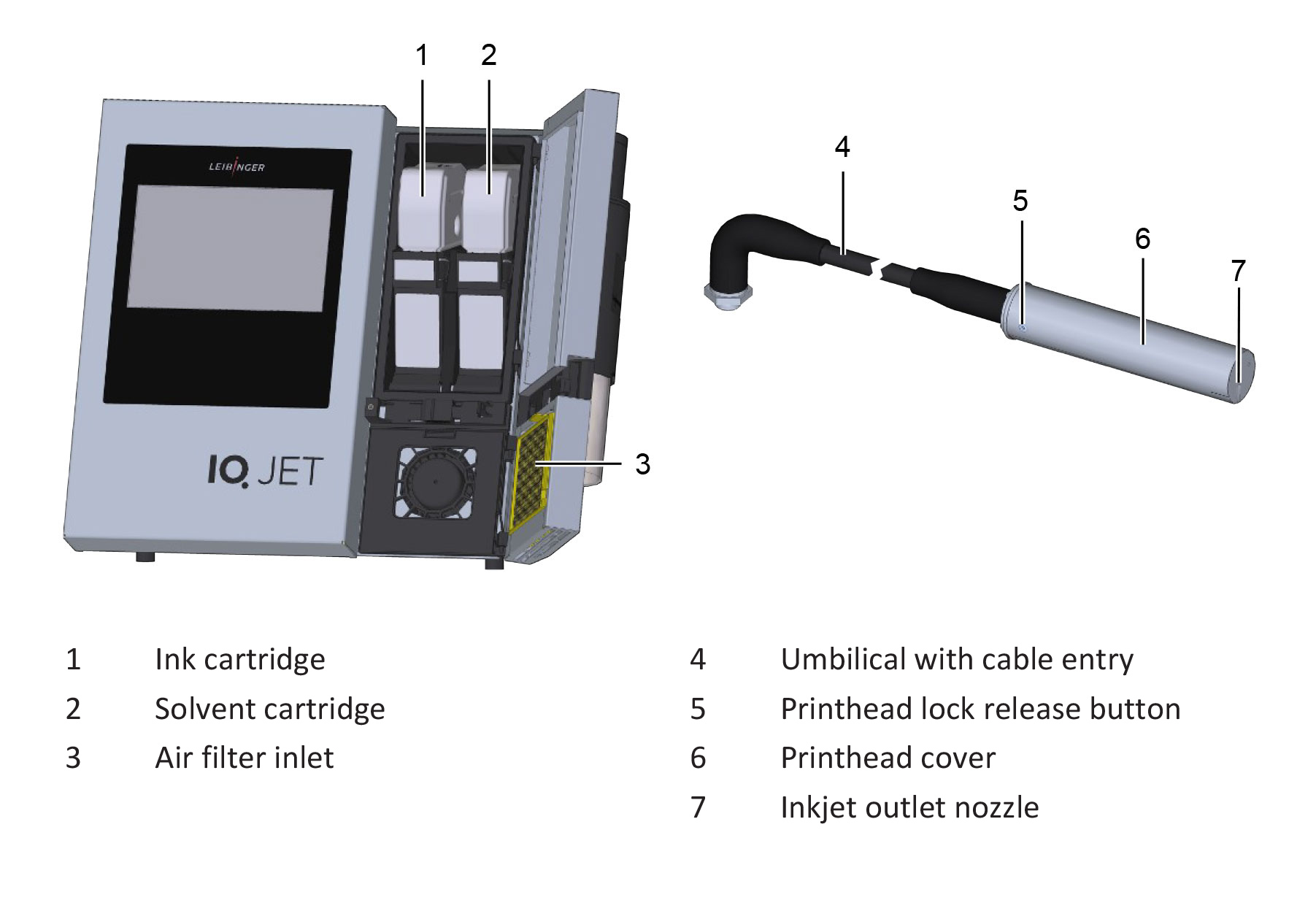

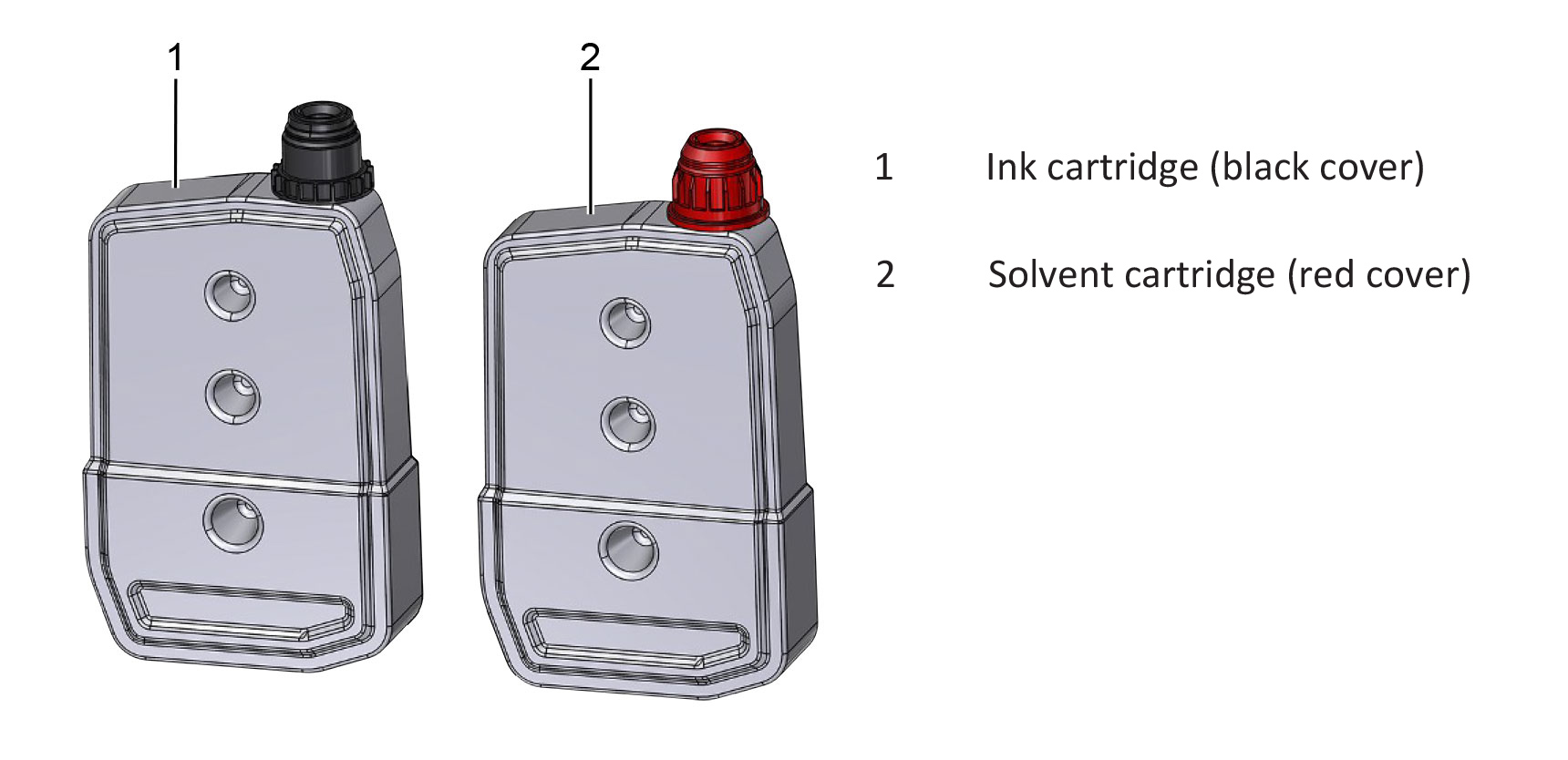

The printer has two separate ink and solvent tanks. The tanks can be filled with sealed cartridges. The cartridges open automatically when inserted into the printer and are then emptied into the tanks.
During operation, the solvent contained in the ink gradually evaporates. This changes the viscosity of the ink. The printer therefore continuously monitors the viscosity of the ink. As soon as the viscosity of the ink no longer corresponds to the desired value, the printer adjusts it by adding thinner from the tank. This ensures consistent ink viscosity and always high-quality printing.
